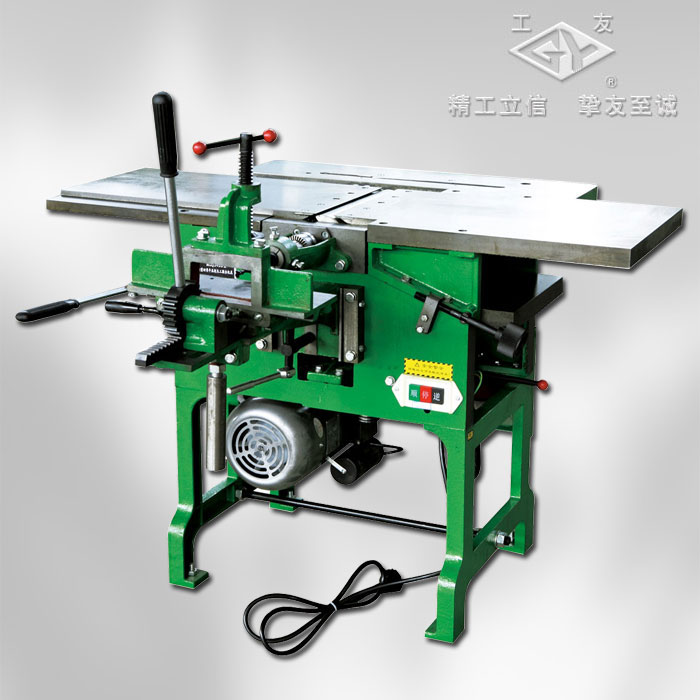

| Technical Specification | Unit | MLQ342G |
| Main spindle speed | r/min | 3560 |
| Max. planing width | mm | 250 |
| Max.planing depth | mm | 3 |
| Max. sawing thickness | mm | 100 |
| Max.working thickness | mm | 110 |
| Mortising range | mm | 10-16 |
| Max. mortise depth | mm | 120 |
| Circular sawblade | mm | 300×1.4×25 |
| Emery wheel for blade | mm | B50×32×13 |
| Emery wheel for sawblade | mm | PDX1125×10×18 |
| V-belt | A-1000 | |
| Motor power | kW/V | 1.5/ 220 |
| Overall dimensions | mm | 1010×1000×810 |
| Net.weight | kg | 150 |
| Planing blade | mm | 260×3×25 |
